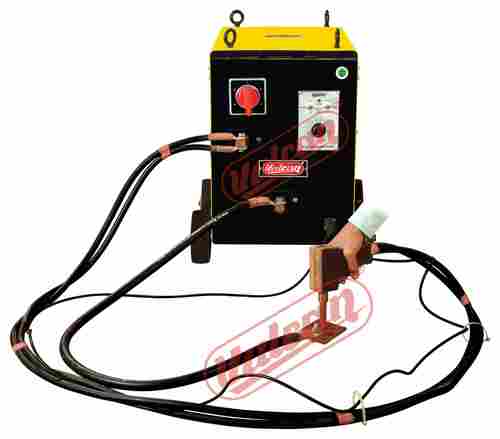

Industrial Spot Welding Machine

Industrial Spot Welding Machine

110000 INR/Unit

Product Details:

  • Usage Industrial,Domestic And etc.
  • Product Type Spot Welding Machine
  • Weight 170 Kilograms (kg)
  • Color Yellow
  • Material Copper
  • Click to View more
X

Industrial Spot Welding Machine Price And Quantity

  • 1 Unit
  • 110000 INR/Unit

Industrial Spot Welding Machine Product Specifications

  • 170 Kilograms (kg)
  • Industrial,Domestic And etc.
  • Yellow
  • Copper
  • Spot Welding Machine

Industrial Spot Welding Machine Trade Information

  • 20 Unit Per Day
  • 1 Week
  • Australia North America South America Eastern Europe Western Europe Middle East Central America Asia Africa

Product Description

Industrial Spot Welding Machine :-

VULCAN Pedal worked Rocker arm sort spot welding machines are provided in 8, 15, 6 and 8 KVA models every single one with three modular throat thickness to cover almost all uses. Each machine is manufactured of steel forged inflexible structures to remove the minutest spot defects.

Salient Features

  • Transformer: Low spillage plan, appropriate cooling and protection including winding varnishing through vacuum pressurized infusing system to upgrade unwavering quality and service life
  • Current Regulation: Power setting from least to extreme can be performed by 6 position of off load tap replacing switch
  • Time Control: Strong state electronic clock to regulate solder time varying from 5 to 50 cycles as well as 1 to 10 seconds to accomplish exact and repeatable spots
  • Weld Force: Changeable maximum tension levels are obtained from a hefty duty compaction spring attached on a rod of pressure with customizable nut. Therefore, here is a unique system in our machine reduces worker fatigue and guarantees easy setting
  • Cooling: Arms and Electrodes are given water chilling system with hose links (Coolant pump and water supply to be organized by the customer)
  • Anodes: One sets of morse taper 2 straight produced using solidified copper amalgam is provided with the machine. Other sort of extra electrodes can be provided on particular requests
  • Cabinet: Novel design concepts and Modern looks. Epoxy powder covered structure for corrosion free long life

Specifications:

PARTICULARS

UNITS

VS-6

VS-8

VS-10

VS-15

Input Supply

Volts

415 V, 1 Phase (2 lines of 3 phase supply), 50 Hzs. AC

Rating @ 50% Duty Cycle

KVA

6

8

10

15

Nominal Throat Clearance

MM

250

Throat Depth

MM

200 300 400

300 400 500

300 400 500

300 400 600

Welding Range Max.2x
Mild Steel Min.2x
Thickness

MM
MM

2.0 1.6 1.0
0.3 0.25 0.1

2.5 2.0 1.25
0.35 0.3 0.2

3.0 2.5 1.5
0.4 0.3 0.2

3.5 3.0 1.0
0.6 0.5 0.1

Brass Steel Max.2x
Thickness Min.2x

MM
MM

0.8 0.7 0.45
0.17 0.1 0.08

1.0 0.9 0.6
0.2 0.1 0.08

1.2 1.1 0.75
0.25 0.2 0.12

2.0 1.5 0.9
0.3 0.2 0.1

Stainless Steel Max.2x
Thickness Min.2x

MM
MM

1.6 1.4 0.8
0.25 0.2 0.12

2.0 1.8 1.0
0.3 0.25 0.15

2.4 2.2 1.2
0.32 0.28 0.18

3.0 2.4 0.9
0.4 0.3 0.1

Max. Available short ckt. Current

KA

6.5 5.5 5

8 7.5 7

8.5 7.5 6

11 10 8

Nominal Electrode Force (Approx)

Kg.

150 100 75

150 100 75

150 100 75

150 100 60

Max. Electrode Stroke

MM

70

Insulation

Class

A (Copper Wound )

Max. Dimensions Without Arm (Approx)

L x W x H

MM

600 x 390 x 1330

630 x 440 x 1330

Weight Without Arm (Approx)

Kgs.

120

130

140

150

Confirms to


IS 4804 (Part II) 1968

Customers to provide the following services

External Water supply at max. Temp. 30o C

Lit./Min

3

5

Size of mains Supply Copper Cable

MM2

8

10

12

15

Recommended Switch Rating

Amps

30

Delayed Action Fuse Rating

Amps

20

30
